Overview

A customer was looking for a simple report that would display a list of Incidents and Requirements, that belong to Releases that:

  1. have an end date in the past
  2. are not deleted
  3. do not have a status 'Canceled'

It will display for each Release:

  • The date that each Release was ended
  • The name and  type of the Release (Major/Minor/Sprint)
  • The number of Incidents and Requirements assigned to each Release

Solution

The solution is to use the following ESQL in a custom report section.

    Creating the Custom Report

    This article assumes you are familiar with the basics of writing custom reports in Spira.
    In this example we will be using a custom report with a custom SQL section.

    To create the report you need to:

    1. Go to Administration  > Edit Reports
    2. Create a new Report
    3. Specify that it should allow generation in MS-Word, Excel, HTML and PDF formats

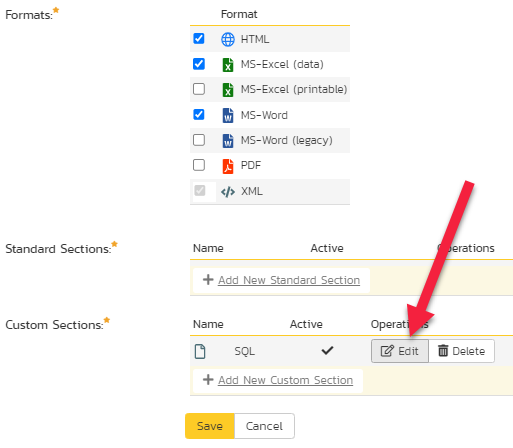

    4. Choose to add a Custom Section:
    5. Then click [Save] twice and you can run your report.

    Step1.
    Paste into the Query section information below:

    SELECT RL.NAME AS Name, RL.RELEASE_TYPE_NAME AS ReleaseType,
    RL.REQUIREMENT_COUNT AS No_of_RQ,
    COUNT(INC.INCIDENT_ID) AS No_of_INC,
    RL.END_DATE AS EndDate
    FROM SpiraTestEntities.R_Releases AS RL
    FULL JOIN SpiraTestEntities.R_Incidents AS INC ON RL.RELEASE_ID = INC.RESOLVED_RELEASE_ID
    WHERE
    DiffDays(CurrentDateTime(), RL.END_DATE) < 0 AND RL.IS_DELETED = false AND RL.RELEASE_STATUS_ID != 6 AND RL.PROJECT_ID = ${ProjectId}
    GROUP BY RL.NAME, RL.RELEASE_TYPE_NAME, RL.REQUIREMENT_COUNT, RL.END_DATE
    ORDER BY RL.END_DATE asc



    Step 2.

    Copy the template into that section from below:

    <?xml version="1.0" encoding="utf-8"?>
    <xsl:stylesheet version="1.0" xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" exclude-result-prefixes="msxsl">
      <xsl:template match="/RESULTS">
        <table class="DataGrid">
        <tr>
        <th>Name</th>
        <th>ReleaseType</th>
        <th>No_of_RQ</th>
        <th>No_of_INC</th>
        <th>EndDate</th>
        </tr>
          <xsl:for-each select="ROW">
            <tr><td><xsl:value-of select="Name"/></td>
            <td><xsl:value-of select="ReleaseType"/></td>
            <td><xsl:value-of select="No_of_RQ"/></td>
            <td><xsl:value-of select="No_of_INC"/></td>

            <td>

            <xsl:call-template name="format-date">
            <xsl:with-param name="datetime" select="EndDate"/>
             </xsl:call-template>


            </td>
            </tr>
          </xsl:for-each>
            </table>
        </xsl:template>
     <xsl:template name="format-date">
        <xsl:param name="datetime"/>
        <xsl:variable name="date" select="substring-before($datetime, 'T')" />
        <xsl:variable name="year" select="substring-before($date, '-')" />
        <xsl:variable name="month" select="substring-before(substring-after($date, '-'), '-')" />
        <xsl:variable name="day" select="substring-after(substring-after($date, '-'), '-')" />
        <xsl:variable name="time" select="substring-before(substring-after($datetime, 'T'), '.')" />
        <xsl:variable name="monthname">
          <xsl:choose>
            <xsl:when test="$month='01'">
              <xsl:value-of select="'Jan'"/>
            </xsl:when>
            <xsl:when test="$month='02'">
              <xsl:value-of select="'Feb'"/>
            </xsl:when>
            <xsl:when test="$month='03'">
              <xsl:value-of select="'Mar'"/>
            </xsl:when>
            <xsl:when test="$month='04'">
              <xsl:value-of select="'Apr'"/>
            </xsl:when>
            <xsl:when test="$month='05'">
              <xsl:value-of select="'May'"/>
            </xsl:when>
            <xsl:when test="$month='06'">
              <xsl:value-of select="'Jun'"/>
            </xsl:when>
            <xsl:when test="$month='07'">
              <xsl:value-of select="'Jul'"/>
            </xsl:when>
            <xsl:when test="$month='08'">
              <xsl:value-of select="'Aug'"/>
            </xsl:when>
            <xsl:when test="$month='09'">
              <xsl:value-of select="'Sep'"/>
            </xsl:when>
            <xsl:when test="$month='10'">
              <xsl:value-of select="'Oct'"/>
            </xsl:when>
            <xsl:when test="$month='11'">
              <xsl:value-of select="'Nov'"/>
            </xsl:when>
            <xsl:when test="$month='12'">
              <xsl:value-of select="'Dec'"/>
            </xsl:when>
            <xsl:otherwise>
              <xsl:value-of select="''" />
            </xsl:otherwise>
          </xsl:choose>
        </xsl:variable>
        <xsl:value-of select="concat($day, '-' ,$monthname, '-', $year , ' ', $time)" />
      </xsl:template>


    </xsl:stylesheet>

    Once that is done, you are ready to run your report.

    Viewing the Report

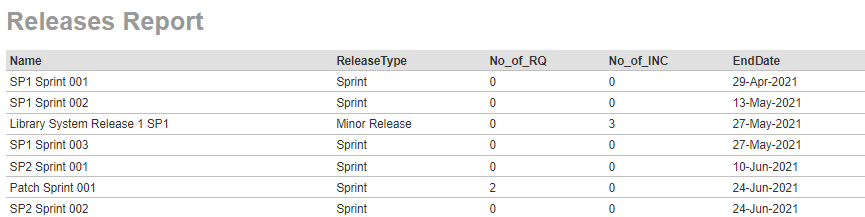

    If you run this report in Excel or HTML format, it will generate the following output:
