Desired Format

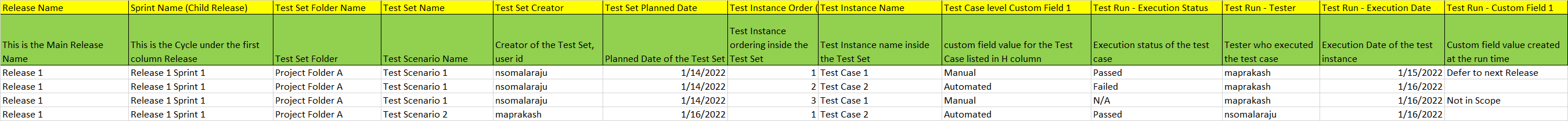

The customer was looking for a report that looked like the following:

Spira Custom Report

Using the Spira custom reporting features, we created the following ESQL query that retrieved the test sets by test folder and release, and included using JOINs the test case instances and test runs. We made the test set folder JOIN and test run JOIN both outer joins so that test sets that were not in a folder and test cases not yet executed were included.

select
TX.RELEASE_VERSION_NUMBER as RELEASE_NAME,
TXF.NAME as TEST_SET_FOLDER_NAME,
TX.NAME as TEST_SET_NAME,
TX.CREATOR_NAME,
TX.PLANNED_DATE,
TXC.POSITION as TEST_CASE_POSITION,
TC.NAME as TEST_CASE_NAME,
TR.EXECUTION_STATUS_NAME,
TR.TESTER_NAME,
TR.END_DATE as EXECUTION_DATE
from SpiraTestEntities.R_TestSets as TX
left join SpiraTestEntities.R_TestSetFolders as TXF on TX.TEST_SET_FOLDER_ID = TXF.TEST_SET_FOLDER_ID
join SpiraTestEntities.R_TestSetTestCases as TXC on TX.TEST_SET_ID = TXC.TEST_SET_ID
join SpiraTestEntities.R_TestCases as TC on TXC.TEST_CASE_ID = TC.TEST_CASE_ID
left join SpiraTestEntities.R_TestRuns as TR on TXC.TEST_SET_TEST_CASE_ID = TR.TEST_SET_TEST_CASE_ID
where TX.IS_DELETED = False and TC.IS_DELETED = False

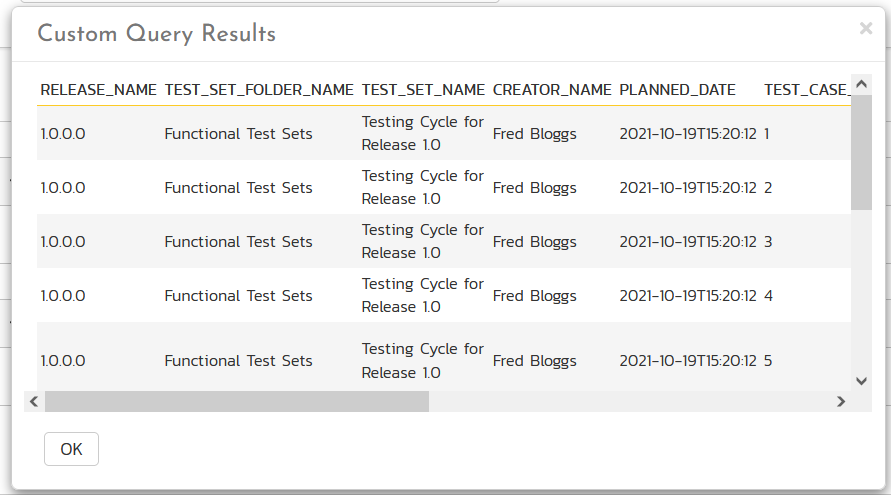

When you preview the data, it looks like the following:

When you click the button to generate the default XSLT template, you get a table that displays this data. We modified this slightly to make the heading names mixed-case and added better date formatting. The resulting XSLT template to use is:

<?xml version="1.0" encoding="UTF-8"?>
<xsl:stylesheet xmlns:xsl="http://www.w3.org/1999/XSL/Transform" xmlns:msxsl="urn:schemas-microsoft-com:xslt" version="1.0" exclude-result-prefixes="msxsl">
   <xsl:template match="/RESULTS">
      <table class="DataGrid">
         <tr>
            <th>Release Name</th>
            <th>Test Set Folder Name</th>
            <th>Test Set Name</th>
            <th>Test Set Creator</th>
            <th>Test Set Planned Date</th>
            <th>Test Instance Order (Sequencing)</th>
            <th>Test Instance Name</th>
            <th>Test Run - Execution Status</th>
            <th>Test Run - Tester</th>
            <th>Test Run - Execution Date</th>
         </tr>
         <xsl:for-each select="ROW">
            <tr>
               <td>
                  <xsl:value-of select="RELEASE_NAME" />
               </td>
               <td>
                  <xsl:value-of select="TEST_SET_FOLDER_NAME" />
               </td>
               <td>
                  <xsl:value-of select="TEST_SET_NAME" />
               </td>
               <td>
                  <xsl:value-of select="CREATOR_NAME" />
               </td>
                <td class="Date">
                  <xsl:call-template name="format-date">
                    <xsl:with-param name="datetime" select="PLANNED_DATE" />
                  </xsl:call-template>
                </td>
               <td>
                  <xsl:value-of select="TEST_CASE_POSITION" />
               </td>
               <td>
                  <xsl:value-of select="TEST_CASE_NAME" />
               </td>
               <td>
                  <xsl:value-of select="EXECUTION_STATUS_NAME" />
               </td>
               <td>
                  <xsl:value-of select="TESTER_NAME" />
               </td>
                <td class="Date">
                  <xsl:call-template name="format-date">
                    <xsl:with-param name="datetime" select="EXECUTION_DATE" />
                  </xsl:call-template>
                </td>
            </tr>
         </xsl:for-each>
      </table>
   </xsl:template>
  <xsl:template name="format-date">
    <xsl:param name="datetime"/>
    <xsl:variable name="date" select="substring-before($datetime, 'T')" />
    <xsl:variable name="year" select="substring-before($date, '-')" />
    <xsl:variable name="month" select="substring-before(substring-after($date, '-'), '-')" />
    <xsl:variable name="day" select="substring-after(substring-after($date, '-'), '-')" />
    <xsl:variable name="time" select="substring-before(substring-after($datetime, 'T'), '.')" />
    <xsl:variable name="monthname">
      <xsl:choose>
        <xsl:when test="$month='01'">
          <xsl:value-of select="'Jan'"/>
        </xsl:when>
        <xsl:when test="$month='02'">
          <xsl:value-of select="'Feb'"/>
        </xsl:when>
        <xsl:when test="$month='03'">
          <xsl:value-of select="'Mar'"/>
        </xsl:when>
        <xsl:when test="$month='04'">
          <xsl:value-of select="'Apr'"/>
        </xsl:when>
        <xsl:when test="$month='05'">
          <xsl:value-of select="'May'"/>
        </xsl:when>
        <xsl:when test="$month='06'">
          <xsl:value-of select="'Jun'"/>
        </xsl:when>
        <xsl:when test="$month='07'">
          <xsl:value-of select="'Jul'"/>
        </xsl:when>
        <xsl:when test="$month='08'">
          <xsl:value-of select="'Aug'"/>
        </xsl:when>
        <xsl:when test="$month='09'">
          <xsl:value-of select="'Sep'"/>
        </xsl:when>
        <xsl:when test="$month='10'">
          <xsl:value-of select="'Oct'"/>
        </xsl:when>
        <xsl:when test="$month='11'">
          <xsl:value-of select="'Nov'"/>
        </xsl:when>
        <xsl:when test="$month='12'">
          <xsl:value-of select="'Dec'"/>
        </xsl:when>
        <xsl:otherwise>
          <xsl:value-of select="''" />
        </xsl:otherwise>
      </xsl:choose>
    </xsl:variable>
    <xsl:value-of select="concat($day, '-' ,$monthname, '-', $year , ' ', $time)" />
  </xsl:template>
</xsl:stylesheet>

This was then saved as a new custom report.

Sample Report Output

When you run this custom report inside Spira with the sample "Library Information System" project, you will get the following output (in this case from Excel):

Release NameTest Set Folder NameTest Set NameTest Set CreatorTest Set Planned DateTest Instance Order (Sequencing)Test Instance NameTest Run - Execution StatusTest Run - TesterTest Run - Execution Date
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20211Ability to create new bookFailedJoe P Smith12/20/2021
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20212Ability to edit existing bookPassedFred Bloggs12/20/2021
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20213Ability to create new authorFailedJoe P Smith12/20/2021
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20214Ability to edit existing author  --
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20215Ability to reassign book to different author  --
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20216Book management  --
1.0.0.0Functional Test SetsTesting Cycle for Release 1.0Fred Bloggs10/19/20217Author management  --
1.1.0.0Functional Test SetsTesting Cycle for Release 1.1Fred Bloggs--1Person loses book and needs to report lossFailedSystem Administrator1/18/2022
1.1.0.0Functional Test SetsTesting Cycle for Release 1.1Fred Bloggs--1Person loses book and needs to report lossPassedSystem Administrator1/18/2022
1.1.0.0Functional Test SetsTesting Cycle for Release 1.1Fred Bloggs--2Adding new book and author to libraryNot RunSystem Administrator--
1.1.0.0Functional Test SetsTesting Cycle for Release 1.1Fred Bloggs--3Ability to create new bookPassedFred Bloggs11/13/2021
